Dolby SLS 3-Axis Speaker MA480AS
Liên hệ nhận báo giá
SLS 3-Axis Speaker
The SLS MA480AS is a high-power two-way loudspeaker, providing pan, tilt, and rotation capabilities for larger cinemas and auditoriums.
The SLS MA480AS is a high-power two-way loudspeaker, providing pan, tilt, and rotation capabilities for larger cinemas and auditoriums. The SLS MA480AS provides an 80° vertical x 80° – 130° asymmetrical horizontal dispersion pattern for more uniform coverage in all seating locations across the auditorium or theatre.

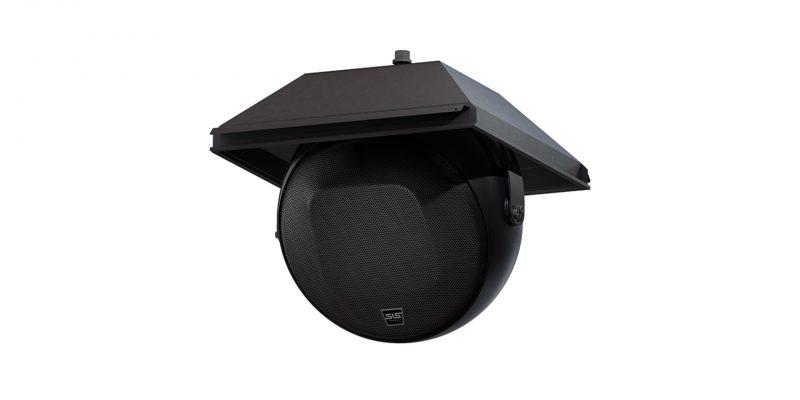

Featuring a 400 W, 12” coaxial full-range speaker and passive crossover, the MA480AS is housed in a spherical-shaped molded enclosure that enables quick installation and easy three-axis aiming for fulfilling Dolby Atmos® aiming requirements.
The MA480AS was designed primarily for Dolby Atmos® top surround applications but can also be used for side surrounds in some cases. The MA460AS is also available if a 60°V x 60° – 150°H asymmetric dispersion pattern is desired.
Features
-
Spherical-shaped molded enclosure for quick installation
-
Installs from a single point, (typically all-thread)
-
Three-axis aiming (pan, tilt, and rotation)
-
Custom asymmetric dispersion pattern waveguide provides uniform coverage from wall positions
-
Exceptionally clear, powerful sound
-
Reduces Dolby Atmos system installation time
-
Ceiling grid supports the speaker and optional rigging kit
-
Two overhead rigging kits available: FCT-24 and RCT-24
-
WMA-15 Wall-Mount Kit available
Specifications
-
OPERATING RANGE
60 Hz to 20 kHz
-
SENSITIVITY (1W@1M)
98 dB
-
COVERAGE ANGLE (VERTICAL)
80 Degrees
-
COVERAGE ANGLE (HORIZONTAL AT TOP)
80 Degrees
-
COVERAGE ANGLE (HORIZONTAL AT BOTTOM)
130 Degrees
-
CONTINUOUS POWER RATING
400 W AES
-
MAX SPL (CALCULATED) 1M
124dB Cont/ 127 dB Program
-
NOMINAL IMPEDANCE
8 Ohms
-
TRANSDUCERS LOW
12″ Woofer (Single magnet neodymium motor & Interleaved sandwich voice coil)
-
TRANSDUCERS HIGH
2.4″ Coaxially Mounted (Titanium diaphragm & Edge-wound aluminum ribbon HF voice coil)
-
INPUT
Barrier Strip
-
DIMENSIONS
20″ H x 21.7″ W x 17.8″ D (50.8 x 55.11 x 45.21 cm)
-
NET WEIGHT
25 lb (11.3 kg) (includes yoke mount)
-
SHIPPING DIMENSIONS
24 x 24 x 21.3 in (61 x 61 x 54 cm)
-
SHIPPING WEIGHT
33.25 lb (15.1 kg)
-
ENCLOSURE
Molded
