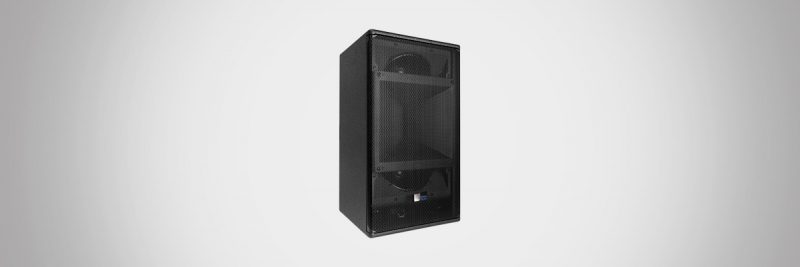

Meyersound ULTRA-X40

PRECISION CONCENTRIC DRIVER CONFIGURATION

The ULTRA-X40 brings the technology breakthroughs in our flagship LEO Family line arrays to a versatile, compact loudspeaker. Its innovative concentric-driver configuration couples two 8-inch cone drivers to a rotatable waveguide surrounding a 3-inch high-frequency compression driver, to deliver smooth response across its entire range and directional control down to 400 Hz.

IMPRESSIVELY POWERFUL, STUNNINGLY COMPACT

The ULTRA-X40 breaks new ground in power-to-size performance, thanks to its ultra-efficient 3-channel Class D amplifier that provides peak output of 1,950 watts with a max sustained current draw of just 1.3 A (230 V AC). And, it delivers a linear peak SPL of 130.5 dB free-field at 1 meter measured with Meyer Sound M-Noise. All this in a speaker that’s just 12.5 by 22 by 14 inches and less than 55 pounds—20 pounds lighter than its predecessor, the UPA-1P.

BROADEN (OR NARROW) YOUR HORIZONS

Two horn options give you total flexibility in system design. The ULTRA-X40’s precisely-tuned, rotatable 110° x 50° Constant-Q horn delivers uniform response throughout its coverage area. Need more focused coverage? Choose the ULTRA-X42 variation, which offers a narrower 70° x 50° pattern.

ALWAYS ON POINT

The ULTRA-X40 brings new versatility to system design and deployment. It’s at home in any portable or installed application requiring predictable, controllable wide coverage, from concert halls and clubs to houses of worship, theatrical sound reinforcement, theme parks, stadiums, concert halls, and nightclubs. It’s perfect for frontfill and under balcony use and in portable A/V systems and small voice-reinforcement systems.

READY FOR RIGGING

If you can dream it, you can install it, with ULTRA-X40’s flexible rigging and mounting options. An integral handle can be used for portable applications or removed for permanent installation; 11 integral M8 points and an integral 35 mm pole-mount receptacle broaden the possibilities. Optional rigging accessories include an adjustable pole with M20 slug, a U-bracket, a yoke, a pinnable link on a channel for hanging multiple units from a single pick-up point, and cluster plates for versatile loudspeaker grouping.

It Meets Expectations, Every Time
