Loa rạp chiếu phim JBL 3732
Liên hệ để báo giá
- Three-way ScreenArray™ design for maximum output,
optimal coverage, and minimum distortion - Triamplified (T) or Biamplified operation
- Approved for THX® certified applications(3732T)
- Ships fully assembled
- Second Generation Optimized Aperture Waveguide
technology for ultra-low distortion, and extremely
uniform frequency response - SSC™ Screen Spreading Compensation
- Focused Coverage Technology™
- Flat-front waveguide design for easy baffle wall installation
- Shallow profile for minimum behind screen
depth requirements
| JBL | CINEMA | 3732-M/HF | S/M, 3732-M/HF | Mid/High Frequency Section for 3732 System – Components: Two 165H Mid Frequency and One 2432H High Freq. Pre-Assembled and Pre-Aimed | Mexico | |
| JBL | CINEMA | 3732-M/HFD | S/M, 3732-M/HF (MADE IN CHINA) | Mid/High Frequency Section for 3732 System – Components: Two 165H Mid Frequency and One 2432H High Freq. Pre-Assembled and Pre-Aimed | China | |
| JBL | CINEMA | 3732-M/HF-T | S/M, 3732-M/HF-T | Mid/High Frequency Section for 3732T System. Components: Two 165H Mid Frequency and One 2432H High Freq. Pre-Assembled and Pre-Aimed | Mexico | |
Three-Way Biamplified or Triamplified (T) ScreenArray Loudspeaker System
The 3732 ScreenArray features true three-way system design enhanced for critical film sound reproduction in small to medium cinemas environments
Specifications
| Frequency Range (-10dB) | 30 Hz – 20 kHz |
| Frequency Response (±3 dB) | 40 Hz – 19 kHz |
| Sensitivity | 104dB @ 2.83V |
| Maximum SPL (1m) | 125 dB @ 1m (3.3 ft), 131 dB peak |
| System Input Power Rating | 3732: LF: 500 W, M/HF: 150 W 3732-T: HF: 85 W |
| Horizontal Coverage Angle | 90° (-6 dB) |
| Vertical Coverage Angle | 20° up, 30° down (-6 dB) |
| Directivity Factor (Q) | 10.0 |
| Directivity Index (DI) | 10 dB |
| Crossover Frequencies | 3732: 350 Hz 3732-T: 1.2 kHz |
| Dimensions (H x W x D) | 1937 x 762 x 450 mm 76.3 x 30 x 17.75 in) |
| Net Weight (each) | 172 lbs (77.9 kg) |
| Shipping Weight | 92.8 kg (205 lbs) |
| Nominal Impedance | 4Ω |
| Power Handling (2Hr AES Rating) | 600W |
| Brand | JBL by Harman |
|---|
| Kích cỡ | ||||
thông số kỹ thuật |
||||
 Bảng thông số kỹ thuật 3732 |
172KB | |||
Tuân thủ |
||||
| Âm thanh Rạp chiếu phim - Tuyên bố Tuân thủ Hệ thống ScreenArray (3 Chiều) |
153KB | |||
Hình ảnh |
||||

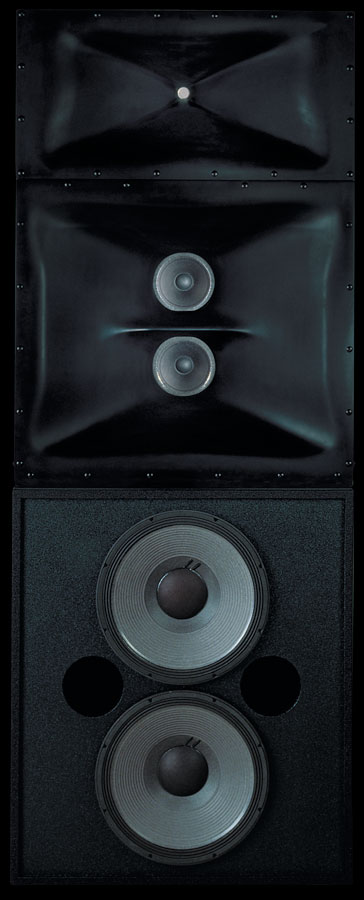

 3732 phía trước |
47,2KB | |||
Tệp CLF |
||||
| JBL Pro TẤT CẢ các tệp CLF |
24 MB | |||
