| Frequency Response (±3 dB) | 40 Hz – 18 kHz |
| Frequency Range (-10dB) | 30 Hz – 18 kHz |
| Sensitivity | 104dB, 2.83V @ 1m (3.3ft) |
| Nominal Impedance | 4Ω |
| Maximum SPL (1m) | 127dB, @ 1m (3.3 ft) 133db peak |
| Passive System Input Power Rating | 400W |
| Crossover Frequency | 1300Hz |
| Dimensions (H x W x D) | 1265 x 762 x 450mm (49.8 x 30 x 17.75in) |
| Net Weight (each) | 137 lbs (62.2 kg) |
| 3739 Low Frequency | 2 M115H-8A 380 mm (15 in) dia.61 mm (2.5 in) edgewound ribbon voice coil transducers mounted in 4509 LF enclosure |
| Shipping Weight | 140 lbs (63.6 kg) |
| 3722-HF High Frequency Pack | One 2418H-1 Compression Driver, One2374 HF horn, one adjustable bracket |
| Power Handling (2Hr AES Rating) | 400W |
JBL 3722/3722N
Liên hệ để báo giá
- 3722 available as a Passive model with network (3722N)
or BiAmp Ready 3722 - Power Capacity: 400 W continuous IEC pink noise
- Sophisticated crossover network
- High quality in a compact and very cost effective system
- Smooth response, Controlled coverage
| JBL | CINEMA | 3722-HF | S/M, 3722-HF | High Frequency Section for 3722 System. Bi-Am Components 2374 ScreenArray Horn, 2418H-1 Driver Pre-Assembled. | Mexico | |
| JBL | CINEMA | 3722-HFD | S/M, 3722-HF (MADE IN CHINA) | High Frequency Section for 3722 System. Bi-Am Components 2374 ScreenArray Horn, 2418H-1 Driver Pre-Assembled. | China | |
| JBL | CINEMA | 3722N-HF | S/M, 3722N-HF | High Frequency Section for 3722N System – Passive. Components: 2374 ScreenArray Horn, 2418H-1 Driver, Network and Bracket Pre-Assembled | Mexico | |
| JBL | CINEMA | 3722N-HFD | S/M, 3722N-HF (MADE IN CHINA) | High Frequency Section for 3722N System – Passive. Components: 2374 ScreenArray Horn, 2418H-1 Driver, Network and Bracket Pre-Assembled | China | |
| Brand | JBL by Harman |
|---|
| Kích cỡ | ||||
thông số kỹ thuật |
||||
 Bảng thông số kỹ thuật 3722/3722N |
148KB | |||
Tuân thủ |
||||
| Âm thanh rạp chiếu phim - Hệ thống ScreenArray (2 chiều) Tuyên bố về sự phù hợp |
90,6KB | |||
Hình ảnh |
||||

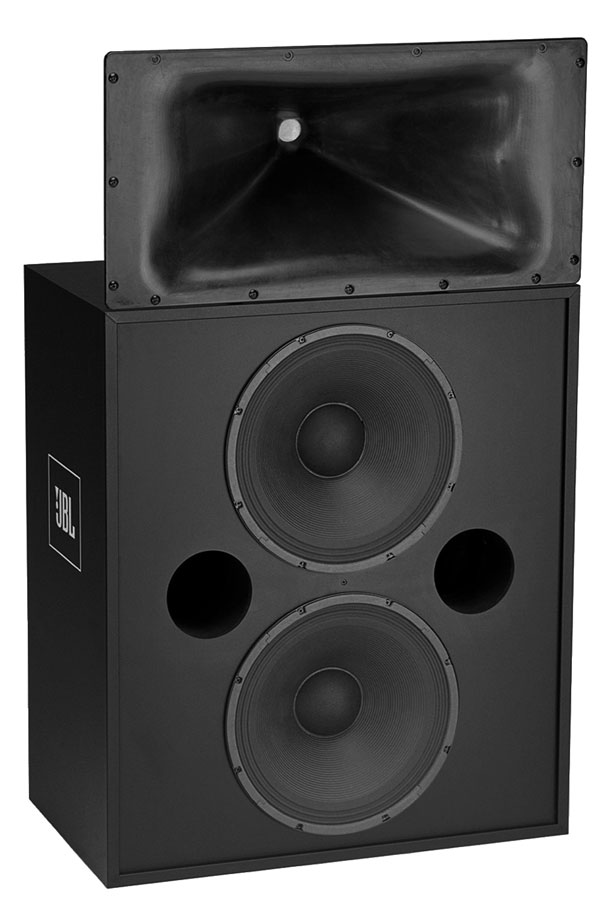

 Góc trước 3722/3722N |
53,7 KB | |||
